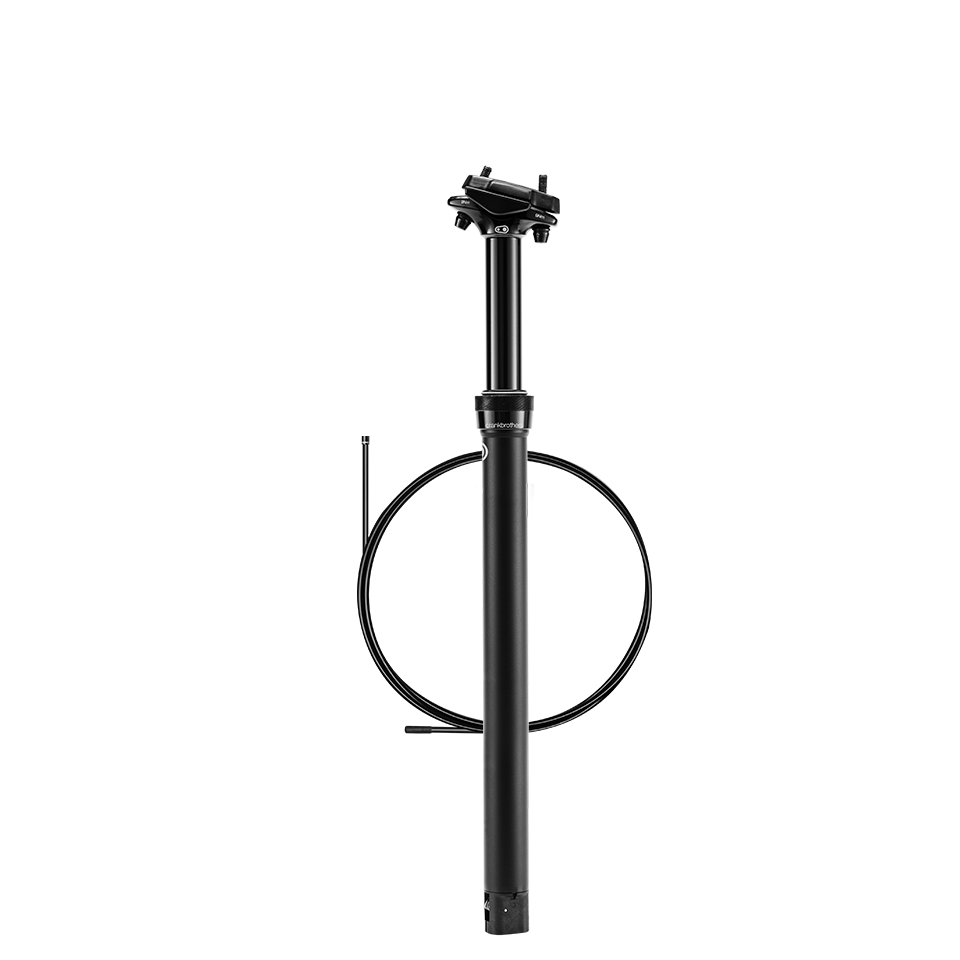

Highline XC/Gravel Dropper - 80mm

Highline XC/Gravel 27.2 Dropper - 80mm


The all-new Highline XC/Gravel delivers infinite adjustment, smooth feel, and easy installation.

  • 27.2mm seatpost diameter to fit most XC and gravel bikes
  • Jagwire® cable and housing
  • Self-contained IFP hydraulic cartridge
  • Internal routing
  • Quick connect mechanism for ease of cable installation
  • Linear actuator for quick return speed
  • 2-bolt standard head

gravel

trail

xc

Regular price $249.99 USD
/
  • Low stock - 6 items left
  • Inventory on the way

Seat Post Diameter 27.2mm

Min Insertion Length 100mm

Max Insertion Length 264mm

Max Extended Length 280mm

Total Post Length 407mm

Min Stack Height 60mm

Setback 0mm

Travel Adjustment 80mm

Material 7075-T6 aluminum

Weight 434g

Warranty 4 years

View our 30-Day Return Policy here

Highline XC/G Size Guide

ATravel:60mm60mm80mm100mm125mm
BMin. Insertion Length:100mm100mm100mm100mm100mm
CMax. Insertion Length:174mm264mm264mm264mm264mm
DMin. Extended Length:120mm120mm140mm160mm185mm
EMax. Extended Length:170mm260mm280mm300mm325mm
FTotal Post Length:297mm387mm407mm427mm452mm
GMin. Stack Height:60mm60mm60mm60mm60mm
